Standard support bases
Standard support bases

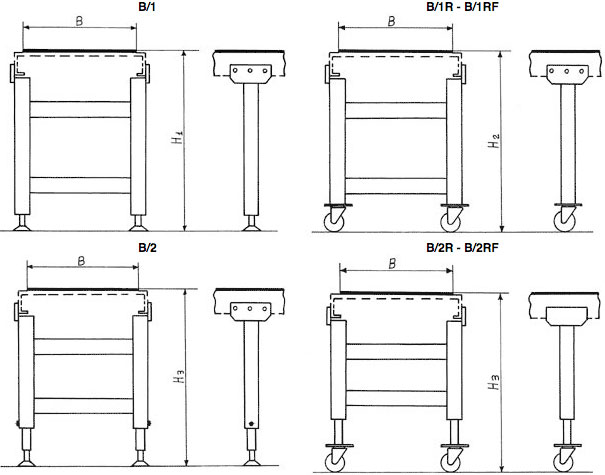

Technical Data- Tubolar structure with electric welding
- Adjustable foots type M16 arae assembled on serie B/1 and B/2
- Fixed wheels with Ø 100 mm are assembled on series B/1R and B/2R
- Turning wheels with brake are assembled on series B/1RF and B/2RF

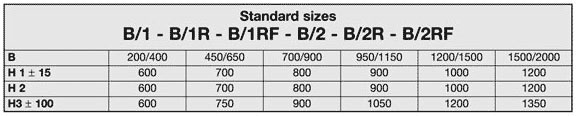

- B = Width of the belt
- H = Height starting from the belt
