Product Details

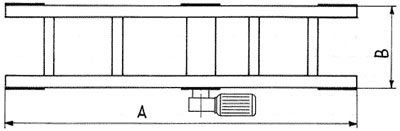

GR/TL 2 - Linear module
Linear module with central driving for movement of palletsTechnical Data
- Electric connection 220/380V 50Hz 3-Phase.
- Aluminium structural shape frame 90x45 mm.
- Special chain of 3/8" triple with idler roller Ø 15 mm. pitch 19,05 mm.
- Sliding of the chain on Polizene.
- Motor and tightener rolle placed in the center of the module.
- Standard speed of about 12 m/min.
- Power of 0,37 kw.
- Bases in electro-welded structure with center distance of 2000 mm.
On request
- Bases in aluminium.
- Different sizes from the standard ones.
