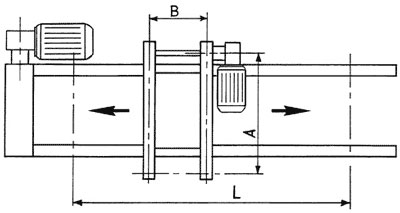

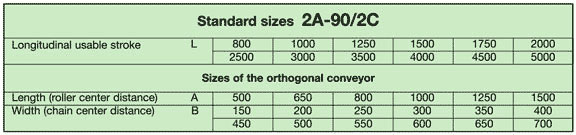

2A-90/2C - Conveyor
Built-up conveyor with orthogonal movementTechnical Data
- Electric connection 220/380V 50Hz 3-Phase.
- Standard speed f the longitudinal conveyor: 22 m/min.
- Standard speed of the orthogonal conveyor: 8 m/min.
- Aluminium structural shape frame 90x45 mm.
- Longitudinal conveyor with chain of 3/4".
- Orthogonal conveyor with straight sideplates chain of 1/2".
- Longitudinal conv.: gear reducer type I50 20/1; motor 0,37Kw.
- Orthogonal conv.: gear reducer type I40 35/1; motor 0,18 Kw.
On request
- Electric control board.
- Bases and side walls.
- Different measures from the standard ones.
