Product Details
T/R 100 - Auxiliary conveyors

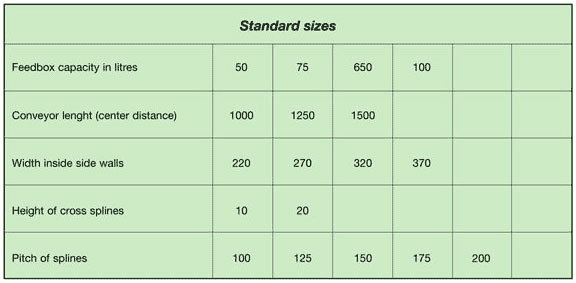

Auxiliary conveyorsTechnical Data
- Electro-welded sheet iron structure.
- Feedbox in electro-welding execution.
- Support base adjustable in height +/100.
- Fixed inclination 39°.
- Discharge throat inclination adjustable so that sloping on discharge floor is min. 34° max. 66°.
- Feedbox rear loading height (average) 930.
- Dragging rollers and tensioning device diametre 80.
- Speed 1,2 m/min.
- Voltage 380 V 50 Hz 3 Phase.
On request
- D.C. motor for adjustable speed (220 V 50 Hz Single-Phase).
- Speeds different from the standard ones.
- Voltage 220 V 50 Hz Single Phase.
- Vullkolan scrapers.
Category: Elevators
