S.30/Filo S.40/Filo - Conveyors
Belt conveyors with final exhaustTechnical Data
- Motor side with final exhaust
- Electric connection 220/380V 50Hz 3-PHASE
- Standard speed: 7,5 m/min
- Green belt in PVC type CV 10 IT Morbido. Impressed
- Sheet steel structure with electric welding
- Covered haulage roller with Ø 34 mm
Series S.30/FILO
- Tightener roller with Ø 30 mm
- Gear reducer type I30 1/20 with motor of 0,09Kw
Series S.40/FILO
- Tightener roller with Ø 40 mm
- Gear reducer type I40 1/25 with motor of 0,18Kw
On request
- Support bases with fixed or adjustable height
- Thermal overload magnetic short circuit and emergency button
- Fixed lateral sides with different heights
Category: Rubber conveyor belts

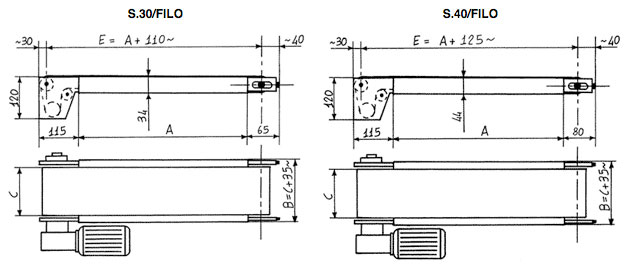

Legend:
Legend - A Lenght of the structure - B Structure width without screws - C Width of the belt - F Width max - E Roller center distance
