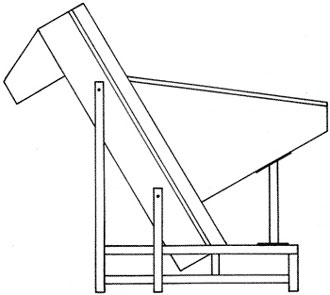

E/P 163 - Elevator with heavy metal plaques
Elevator with heavy metal plaquesTechnical Data
- Electric connection 220/380V 50Hz 3-Phase.
- Fit to convey heavy pieces with rags.
- Electro-welded sheet iron structure.
- Metallic belt at fastened plaques thickness 4 mm., pitch 63,5 mm. with lateral driving chain.
- Lateral side walls on the belt with height 45 mm.
- Driving and tightener pinions with pitch Ø 163 mm.
- Adjustable speed with motovariators.
On request
- Electric control board.
