Product Details
A-45 - Conveyors
Aluminium conveyorsTechnical Data
- Aluminium structural shape frame 45x45.
- Dragging group and lower tensioning device with possibility of longitudinal displacement.
- Head rollers diametre 50 mm.
- Standard speed 7,5 m/min.
- Motor power 0,12 HP 380 V 50 Hz 3 Phase.
On request
- D.C. motor for adjustable speed (220 V 50 Hz Single-Phase).
- Speeds different from the standard ones.
- Motor of 0,12 HP 220 V 50 Hz Single-Phase.
Category: Rubber conveyor belts
Legend:

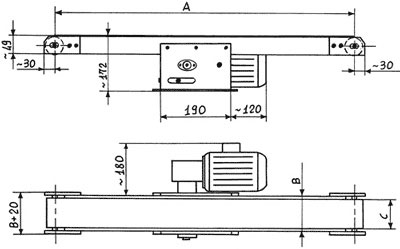

Legend: A Roller center distance - B Structure width - C Belt width
