Product Details

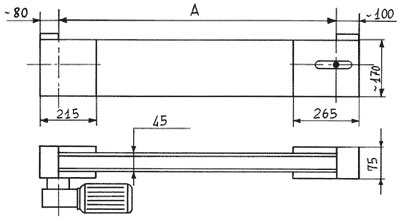

CL/P135 - Conveyor
Conveyor with top roller chainTechnical Data
- Electric connection 220/380V 50Hz 3-Phase.
- Standard speed: 4,2 m/min.
- Aluminium structural shape frame.
- Double top roller chain of 1/2" with Ø 11 mm. pitch 12,7 mm.
- Straight-tooth gears in carbon steel type Z24.
- Gear reducer type I50 100/1 with motor of 0Lateral gear reducer, direct connection.
- Sliding of the chains on Polizene.
On request
- Electric control board.
- Bases.
- Side walls.
- Different measures form the standard ones.
