Product Details
S.30/2 S.40/2 S.60/2 - Conveyors
Belt conveyors with 2 rollersTechnical Data
- Electric connection 220/380V 50Hz 3-PHASE
- Standard speed of about: 7 m/min
- Green belt in PVC type CV 10 IT Morbido. Impressed
- Sheet steel structure with electric welding
Series S.30/2
- Rollers with Ø 30 mm
- Gear reducer type I30 1/25 with motor of 0,09 Kw
Series S.40/2
- Rollers with Ø 40 mm
- Gear reducer type I30 or I40 1/25
- with motor of 0,09 Kw or 0,18 Kw
- Rollers with Ø 50 mm
- Gear reducer type I40 FP 1/30 with motor of 0,18 Kw
Category: Rubber conveyor belts

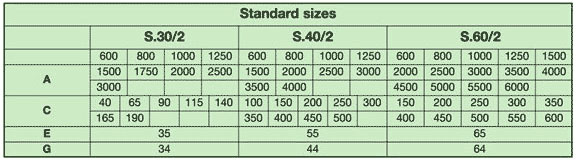

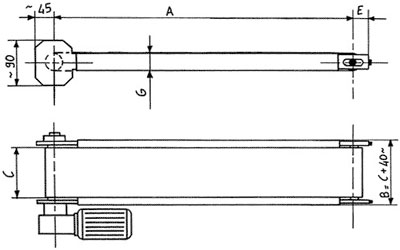

Legend:
Legend: A Roller center distance B Structure width without screws C Width of the belt F Width max
