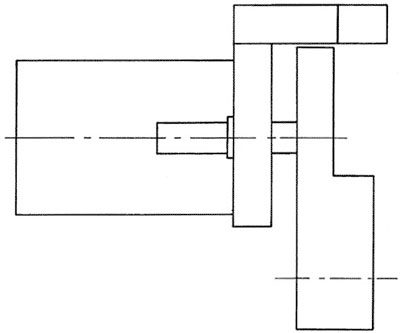

GR/FC 1 - Belt conveyor
Built-up belt conveyorThe using of these retainers is essential in the following situations:
- Stopping of the pallets near the work station (to arrange with lower pneumatic center squares).
- Spacing of the pallets in presence of long bunchings of pallets to avoid extreme shrinkings.
- To make singular the pallets in presence of intermediate transversal releases (2 are requested).
- To make singular the pallets in presence of final releases (1 it is used at fix mechanical stop).
Technical Data
- Movement with pneumatic cylinder.
- Usable pressure 4-6 Bar.
- Double lateral guide with self-lubricant bushings.
- Made in aluminium.
- Traverse of 50 mm.
- V of insertion made at 45°.
- To be placed in the slot of the longitudinal member.
- Fit for pallets with lateral bevells of 20° x 45°.
Category: Free pallets
