Arnaboldi Italia

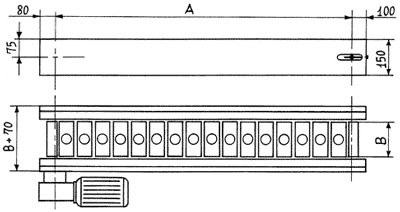

LI/21 - Conveyor

• Double gear reduce type I50 + I40 625/1.
• Motor of 0,18Kw 380V 50Hz 3-Phase brake motor.
• Standard speed: 0,75 m/min.
• Pitch of the plaques: 63,5 mm.
• Aluminium plaques with width 60 mm., thickness 10 mm.
• Double lateral driving chain of 5/8".
• Sliding of the chains on Polizene.
• Driving and tightener pinions type Z21.

• Electric control board.
• Bases.
• Personalized plaques for the positioning of the pieces.
• Different measures from the standard ones.
