Product Details

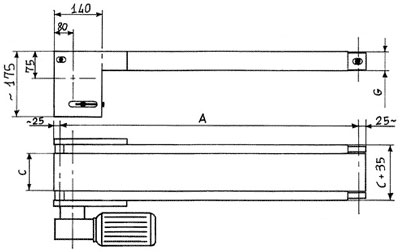

S.30/E45 S.30/E45M - Conveyors
Conveyors with tightener roller placed in the motor sideTechnical Data
- Electric connection: 220/380V 50Hz 3-Phase.
- Electro-welded sheet iron structure.
- Tightener roller Ø 30 mm.
- Driving roller covered of WKL Ø 70 mm.
- Gear reducer type I40FP 40/1 and motor of 0,37Kw.
- Standard speed: 7,5 m/min.
Series S.30/E45
- Minimum thickness G=34 mm.
- Rough belt in PVC type CV 10 IT Morbido; thickness 2 mm.
Series S.30/EM
- Minimum thickness G=42 mm.
- Carbon high tensile steel belt.
