Product Details
S.40 - Conveyors

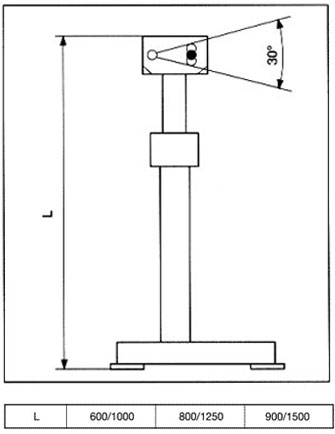

Standard support- One stand model: ideal for belts series S.30 with C = 40-90-135-185, and A = max. 1500
- Two stand model: ideal for belts series S.30/40 with C = 235-285-385-485, and A = max. 1500
Technical Data
- Electric connection : 220/380 V / 50 Hz.
- Motor: 0,09 Kw; 0,18 Kw
- Standard speed of the belt: 7,5 m/min
On request
- Measures different from those reported in the table are also available.
- Belt speed in m/min. 2 2,5 3 4 5 6 7,5 10 15 21.
- DC motors for speed electronic regulation, equipped with operation device (specify the maximum speed of the belt advancement taking into consideration that minimum speed will be equal to 1/10th of the maximum speed).
- Pneumatic motors.
In the order specify motor on the leftside or motor on the right side. As you can see in the photos, the equipment is generally supplied with the motor on the right side.
Category: Rubber conveyor belts
Legend:

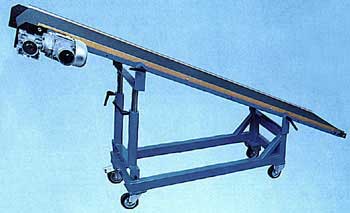

The photo shows a S.40 conveyor, mounted on a base specially designed to satisfy the client's need
