G/PA 1 G/PA 2 - Pallet conveyor
Pallet conveyorTechnical Data
- The pallet conveyor of this series is particularly indicated as accumulation for the automatic loading with robot
- Sheet steel structure with electric welding
- Transport of the pallet with 1" chain with attachments R2
- Steel dragging and tensioning device pinions of 1" Z18
- Double gear reducer I80 F + I50 A 1/150
- Motor of 0,37 Kw 220/380V 50Hz 3-Phase
- Steel pallet of 50/10 with sliding on Polizene
- Electrical equipment to interface with your robot
Category: Free pallets

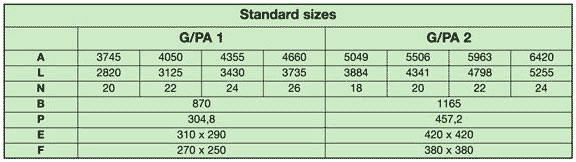

Legend:

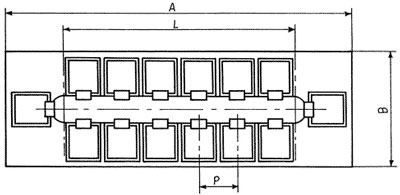

Legend: A Total length - L Pionions center distance - N Numbers of the pallets - B Total width - P Pallet pitch - E Outer dimension pallet - F Inner dimension pallet
