I/G 120 - Conveyors
Inclined conveyors with PVC beltTechnical Data
- Belt in PVC with lateral edges, 10x10, vulcanized on the belt
- Dragging roller and tensioning device diametre 100 mm
- Indicated for transport of pieces and scrap (max 40°C)
- Standard speed of the belt: 9 m/min
- Fixed inclination 45°
- Lateral gear reducer, direct connection type I50 FP 1/50
- Motor of 03,37 Kw 220/380V 50Hz 3-PHASE
- Steel fixed lateral sides with edge in Polizene, height 20 mm
- Support base on wheels
On request
- Thermal overload magnetic short circuit and emergency button
- Fixed lateral sides with different heights
Category: Inclined conveyors
Legend:

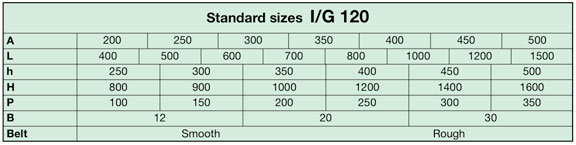

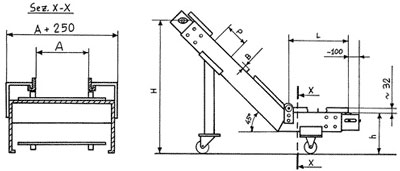

Legend: A Usable width - L Length of the plane - h Height of the plane - H Unloaded height - P Listells pitch - B Listells height
