Product Details
RF/M 50 RF/P 76 RM/M 50 RM/P 76 RM/FM 50 - Roller
Roller conveyorsTechnical Data

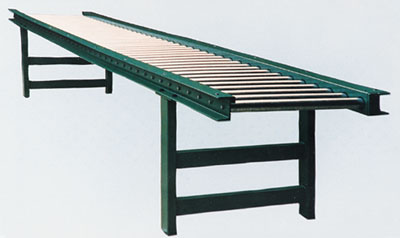

Series RF/M 50
- Idle roller conveyor series medium
- Iron side frames in the shape of U UNI 5680 80 x 45
- Zinc shaft spring rollers GL/10 diametre 50
Series RF/P 76
- Idle roller conveyor-series Heavy weight
- Iron side frames in the shape of U UNI 5680 100 x 50
- Zinc shaft spring rollers MPR/15 diametre 76

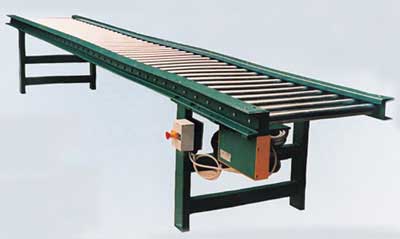

Series RM/M 50
- Motor driven roller conveyor serie medium
- Iron side frames in the shape of U UNI 5680 100 x 50
- Zinc rollers with Polyamide pinion sprocket series 3500/Q3 Ø50
Series RM/FM 50
- Frictioned driven roller conveyor series medium
- Iron side frames in the shape of U UNI 5680 100 x 50
- Zinc rollers with Polyamide pinion sprocket series 3500/Q3 Ø50
Series RM/P 76
- Motor driven roller conveyor-series Heavy weight
- Iron side frames in the shape of U UNI 5680 120 x 55
- Double steel pignon strocket rollers series MPR/N1 Ø 76, inferior motorization with chain loops
Series RM/M 50 RM/FM 50 RM/P 76
- Inferior motorization with tangential chain
- Chain protected by a cover
- Standard speed: 7 m/min
- Electric connection: 220/380V 50Hz Phase
Optional accessories valid for all the roller conveyor
- Fixed support bases with adjustable foots
- Adjustable height support bases
- Support bases with adjustable or fixed wheels
- Thermal overload magnetic short circuit, button speed and emergency stop button
- Lateral sides with fixed width
- Lateral sides with adjustable width
