Product Details

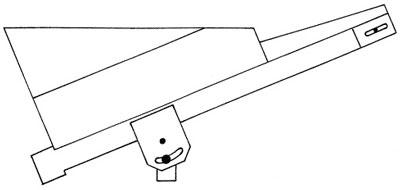

T/F 20 - Auxiliary conveyor
Auxiliary conveyor (to be used with vibrators)Technical Data
- Electric connection 220/380V 50Hz 3-Phase.
- Dragging roller and tensioning device Ø 50 mm.
- Conveyor with aluminium structural shape frame.
- Feedbox in electro-welded sheet iron structure.
- Gear reducer type I30 80/1 and motor of 0,09 Kw.
- Standard speed: 2,7 m/min.
- Adjustable inclination from 0° to 30°.
- Articulated joint for adjustable inclination.
On request
- Electric control board.
- Bases.
- Different sizes from the standard ones.
