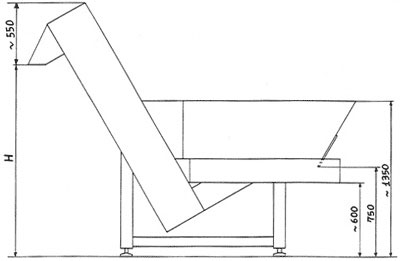

2E/G 120 - Belt conveyor
Built-up belt conveyorTechnical Data
- Electric connection: 220/380V 50Hz 3-Phase.
- Speed of the level conveyor: adjustable from 1 to 5 m/min.
- Speed of the sloping conveyor: 4,3 m/min.
- Smooth belts in PVC type CV 20.
- Rollers with Ø 100 mm.
- 2 motors of 0,37 Kw.
- Electro-welded sheet iron structure.
- Capacity load of the feedbox: 500 kg.
- Back fast unloading with sliding shutter (openable).
On request
- Electric control board.
- Upper covering of the sloping conveyor.
